Home / NEWS/ Acoustic Panel Easy Installation Guide —— Understand in 10 Minutes, Finish in 1 Hour

Acoustic Panel Easy Installation Guide —— Understand in 10 Minutes, Finish in 1 Hour

Feb. 20, 2025

Acoustic Panel Easy Installation Guide-If you were given a 2.4m*0.6m board, where would you put it? Leave a random lucky comment, place an order and get a free piece.

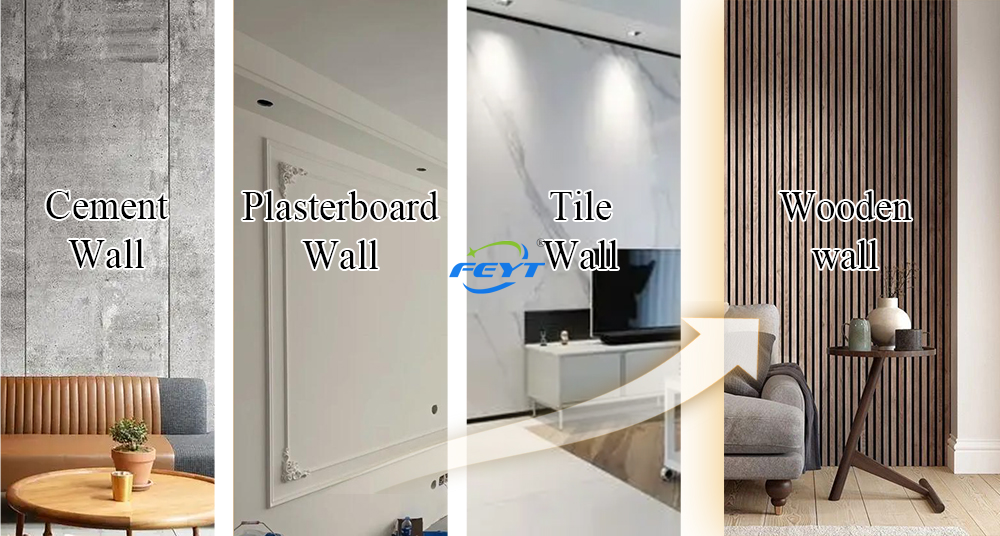

Step 1: Identify Your Wall Type

Acoustic Panel Easy Installation Guide —— Understand in 10 Minutes, Finish in 1 Hour

Wall TypeHow to IdentifyRecommended Installation Method

Concrete/Cement

Hard, rough, gray-white surfaceScrew Fixation (most secure)
Dry/Plasterboard  wallHollow sound when tappedAdhesive Strips (wall-friendly)
Tile wallSmooth, glossy surfaceHeavy-Duty Adhesive (clean grout lines first)
Wooden wallVisible grain or paintScrews/Wood Glue (depending on weight)
 ❗ Pro Tip:
  • Unsure about wall type? Use a coin to scratch lightly:

    • Powdery residue → Drywall

    • No marks → Tile/Concrete

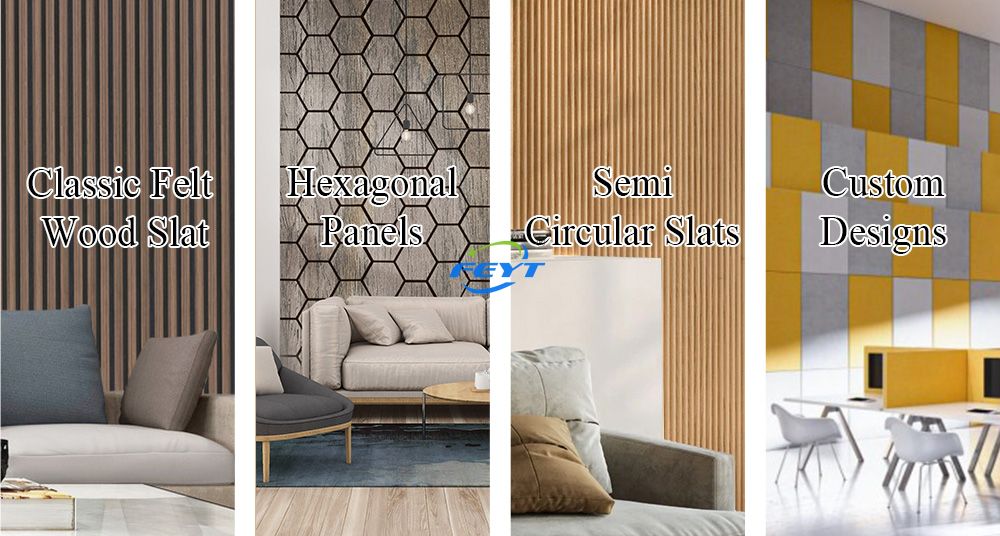

Step 2: Product & Installation Quick Reference

Acoustic Panel Easy Installation Guide —— Understand in 10 Minutes, Finish in 1 Hour


Product TypeSuitable WallsRecommended Adhesive/ToolsInstallation Time
Classic 9mm Felt + Wood SlatConcrete/WoodAdhesive Gel (humid areas) or Screws30 mins/m²
Hexagonal PanelsDrywall/Tile3M VHB Adhesive Strips (included)20 mins/m²
Semi-Circular SlatsConcrete/Solid WallsExpansion Bolts + Frame KitProfessional Installation Required
Custom DesignsAny Flat SurfaceMagnetic Mounts (reusable)Design-Dependent

Step 3: Step-by-Step Installation Methods

Method 1: Adhesive Strips (for Tile/Drywall)

Recommended Products: Hexagonal Panels, Classic Panels (lightweight)
Steps:

  1.   1.Clean the Wall: Wipe the area with alcohol wipes

  2.   2.Peel the Backing: Remove red liner, wait 1 minute (enhances stickiness)

  3.   3.Align & Press: Apply from bottom to top, press firmly for 30 seconds

  4.   4.Reinforce Edges: Use books or weights to secure seams for 24 hours

✅ Benefits: No wall damage, adjustable positioning
⚠️ Note: Below 10℃, heat adhesive with a hairdryer for 5 seconds before application

Method 2: Screw Fixation (for Concrete/Wood)

Recommended Products: Classic Panels, Semi-Circular Slats
Tool Kit:

  •   Drill (with 3mm bit)

  •   Plastic Anchors + Screws (included)

Steps:

  • Mark Holes: Use panel’s pre-drilled holes as a template

  • Drill: Depth = anchor length + 5mm (to prevent cracking)

  • Secure: Insert anchors → tighten screws → snap panel into place

✅ Benefits: Strong hold, ideal for additional decorations
